What Is a Water Pump?

A water pump moves water by converting mechanical energy into flow and pressure. The correct pump depends on where the water starts, where it must go, and what the system requires along the way.

Parts identification

Main Parts of a Centrifugal Pump

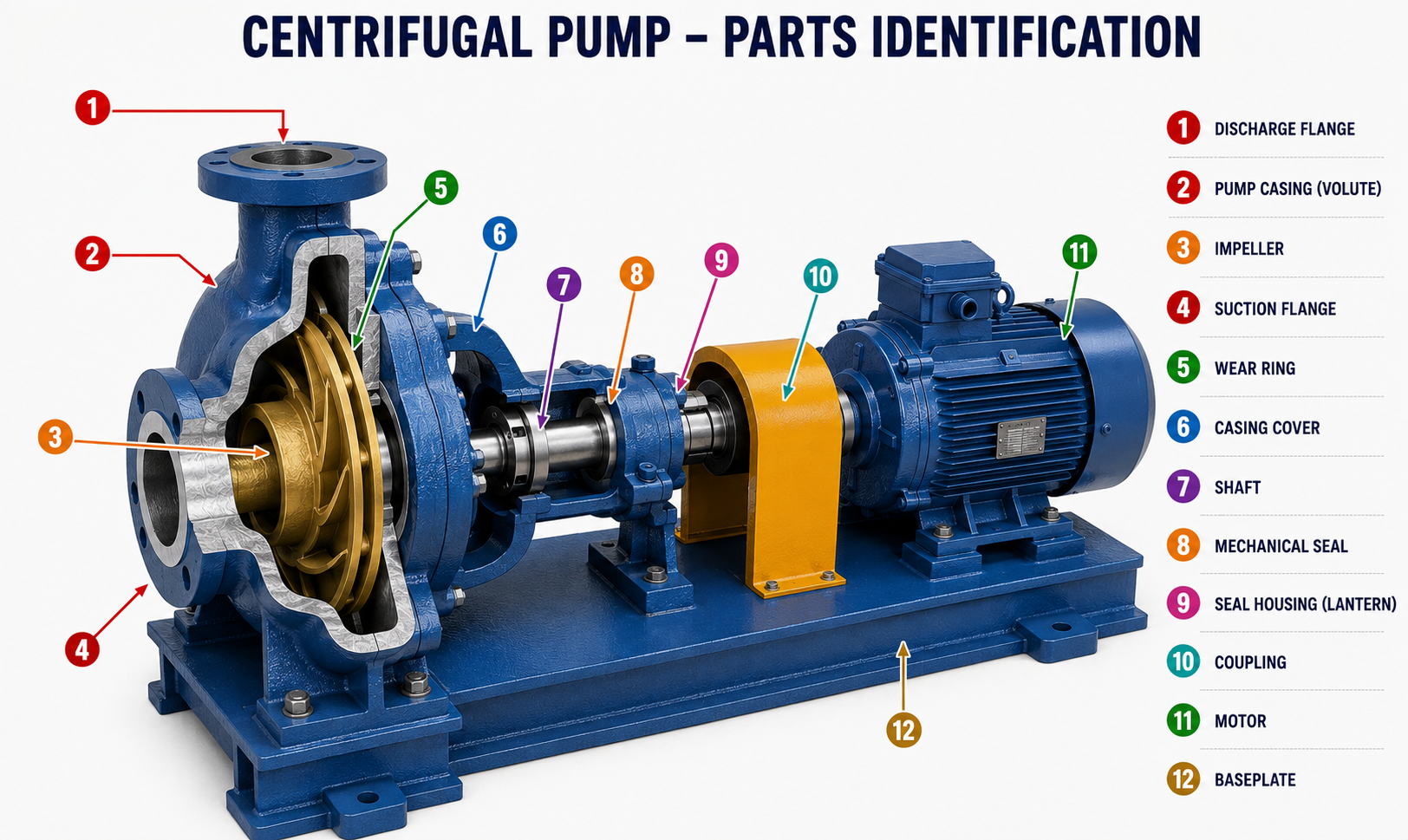

Cutaway centrifugal pump with twelve labeled components including the casing, impeller, shaft, seal, coupling, motor, and baseplate.

Exact construction varies by pump type and manufacturer.

Key takeaways

What to Know

Scan the main ideas first. Open “Key points” only when you want the supporting details.

Swipe the cards to continue

01

Reading the Labeled Pump

The cutaway shows a horizontal end-suction centrifugal pump assembled on a shared baseplate. Water enters through the suction flange at the front, reaches the center of the impeller, and leaves through the discharge flange at the top of the volute casing.

Key points 3
  • Suction flange: connects the incoming pipe to the impeller eye
  • Discharge flange: connects the casing outlet to the delivery pipe
  • Pump casing or volute: collects the water leaving the impeller and guides it toward discharge
02

The Hydraulic Components

The impeller is the rotating hydraulic component. Its vanes add velocity and energy to the water. The wear ring maintains a controlled clearance between rotating and stationary parts, while the casing cover closes the pump body and provides access for inspection.

Key points 3
  • Impeller design affects flow, head, efficiency, and solids handling
  • Wear-ring condition affects internal leakage and performance
  • Casing materials must suit the liquid, pressure, and operating temperature
03

How Power Reaches the Impeller

The motor turns the coupling, which transfers torque to the pump shaft. Bearings support and align the rotating shaft so the impeller can run with controlled movement and clearance.

Key points 3
  • Motor: converts electrical energy into rotation
  • Coupling: joins the motor and pump shafts while allowing the specified alignment tolerance
  • Shaft: carries torque from the coupling to the impeller
04

Containing Water Around the Shaft

The mechanical seal limits leakage where the rotating shaft passes through the stationary pump casing. The seal housing supports this sealing area and must remain correctly aligned, cooled, and maintained for the selected service.

Key points 3
  • Seal materials must suit the liquid, temperature, and operating pressure
  • Dry running or inadequate cooling can quickly damage sealing faces
  • Unexpected leakage should be investigated rather than treated as normal operation
05

Baseplate, Alignment, and Installation

The motor and pump are mounted on one baseplate to maintain their relationship. Correct foundation support, pipe alignment, coupling alignment, priming, and valve arrangement are essential before operation.

Key points 3
  • Pipework should not impose excessive strain on the pump flanges
  • The suction arrangement should avoid air pockets and unnecessary restriction
  • Final rotation, lubrication, guards, and operating limits must follow manufacturer instructions
